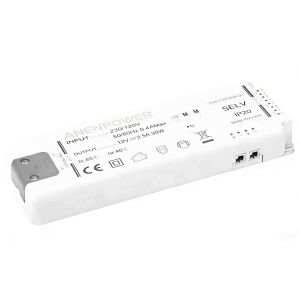

Ultra-Thin 60W Max 12V/24V IP20 LED Power Supply Driver – for Cabinet, Showcase & Retail Display Lighting Solutions

Name: UltraThin 60W Max 12V24V IP20 LED Power Supply Driver for Cabinet Showcase amp Retail Display Lighting Solutions
Brand: ANENpower
Price: 1 USD

Brand Name : ANENpower

Model Number : APL060C

Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Power : 60W max.

Input : 220-240VAC

Output Voltage : 12V/ 24V

Dimension(LxWxH) : 184x63x22mm

Voltage Tolerance : ±5%

Riple(P-P) : ＜1%

Efficiency : ≥85%

Applicant : Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting

Contact Now

Ultra-Thin 60W Max 12V/24V IP20 LED Power Supply Driver – for Cabinet, Showcase & Retail Display Lighting Solutions

Designed specifically for cabinet, showcase, and retail display lighting, this ultra-thin LED power driver delivers reliable 60W max output with a choice of 12V or 24V single-voltage specifications (not dual-voltage compatible) and IP20 protection for safe indoor use. Its sleek, compact profile fits seamlessly into tight spaces—from under retail showcase shelves to inside home cabinetry—eliminating bulky wiring clutter and preserving the aesthetic of your lighting setup, while its industrial-grade components ensure stable, flicker-free illumination to highlight products, collectibles, or retail merchandise consistently. Ideal for both residential cabinet lighting projects and commercial retail display installations, it combines space-saving design with durable performance to meet professional lighting needs.

- Universal Input: 220-240V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

MODEL DETAIL SPEC.		APL060C-1205000	APL060C-2402500
INPUT	Input Voltage:	220-240VAC
	Range of Input Voltage:	198-264VAC
	Input Frequency:	50/60Hz
	Input Current:	0.1AMAX@Full Load
	Inrush Current:	< 65 Amps at 230VAC/50Hz@full load
	Leakage Current:	< 0.25mA/240VAC
	THD (Full load):	< 20%
	Unload Power Consumption:	< 0.5W
	Efficiency:	85%
	Power Factor:	≥0.7@Full Load 220-240VAC
OUTPUT	DC Voltage:	12V	24V
	Rated Current(Max):	5.0A	2.5A
	Rated Power(Max):	60W	60W
	Voltage Tolerance:	±5%
	Ripple and Noise:	400mVp-p	400mVp-p
	Line Regulation:	±3%
	Load Regulation:	±5%
	Setup, Rise, Hold Up Time:	1s, 10ms/60ms 230VAC @ full load
ENVIRONMENTAL	Operating Temperature Ta:	-20℃ ~ +45℃
	Storage Temp:	-40℃ ~ +85℃
	Maximum Case Temperature Tc:	+85℃
	Humidity:	20 ~ 95% RH
	Lifetime:	>30000hours@ta 40℃
PROTECTION	Over Load:	Yes , Protection type: Auto Restore
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage:	Yes , Protection type: Auto Restore
		Protection type: Shut down o/p voltage, re-power on to recover
	Short Circuit:	Yes , Protection type: Auto Restore
SAFETY & EMC	Safety Regulations:	EN61347-2-13:2014+A1:2017,EN61347-1:2015+A1:2021;EN62493:2015
	Withstand Voltage:	I/P-O/P:3750VAC
	Harmonic:	EN61000-3-2 Class C EN61000-3-3
	EMI:	Compliance to EN55015
	EMS:	Compliance to EN61547:2009
OTHER	MTBF:	200,000 Hours Minimum at Full Load at 25℃ Ambient
	Case Material and Size:	Plastic
	IP Grade:	IP20
	Size:	1846322mm
	Weight:	200g / pcs
	Packaging:	100PCS/CTN
