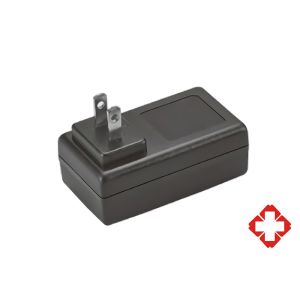

UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems

Name: UL 60601 Certified Medical Power Adapter 12V 3A 24V 15A 36V US Plug for EEG Monitoring Systems
Brand: ANENpower
Price: 1 USD

Wholesale UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems from china suppliers

Brand Name : ANENpower

Model Number : APM24U

Certification : UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Input Range : 100 ~ 240Vac, 50 / 60Hz

Power Range : 16 ~ 36W

Certificates : UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA

Application : Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc.

MTBF : 100,000 Calculated Hours

Case Size : 76L X 43W X 30H (mm)

Contact Now

UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems

UL/IEC 60601 certified medical-grade power adapter delivering precise triple voltage output: 12V 3A, 24V 1.5A, and 36V specifically engineered for EEG electroencephalogram monitoring systems. This US plug adapter features hospital-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate brainwave monitoring and uninterrupted operation in clinical environments. Designed for neurology departments, sleep clinics, and diagnostic facilities, the power supply provides stable voltage regulation and thermal protection for continuous EEG recordings where power reliability directly impacts diagnostic accuracy and patient neurological assessments. FCC certified with medical-grade safety standards, this compact adapter meets stringent requirements for critical neurological monitoring equipment requiring certified performance and electrical safety in professional healthcare applications.

• Power Range: 16~36W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC

• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 76L x 43W x 30H (mm)
• Weight: 200g

Model NO.	MAX OUTPUT POWER	OUTPUT VOLTAGE	MIN LOAD	MAX LOAD	LOAD REGULATION	LINE REGULATION	RIPPLE & NOISE
APM24UA	16W	5-8V	0A	2.0A	±5%	±1%	100mV
APM24UB	18W	5-8V	0A	3.0A	±5%	±1%	100mV
APM24UC	20W	5-8V	0A	4.0A	±5%	±1%	100mV
APM24UD	24W	9-11V	0A	1.5A	±5%	±1%	250mV
APM24UE	27W	9-11V	0A	2.0A	±5%	±1%	250mV
APM24UF	20W	9-11V	0A	3.0A	±5%	±1%	250mV
APM24UG	30W	12-17V	0A	1.66A	±5%	±1%	250mV
APM24UH	24W	12-17V	0A	2.5A	±5%	±1%	250mV
APM24UJ	30W	18-24V	0A	1.33A	±5%	±1%	350mV
APM24UK	30W	18-24V	0A	1.66A	±5%	±1%	350mV
APM24UL	20W	36-48V	0A	0.55A	±5%	±1%	480mV
APM24UM	30W	36-48V	0A	0.83A	±5%	±1%	480mV
APM24UN	36W	12V	0A	3.0A	±5%	±1%	250mV
APM24UP	24W	12V	0A	2.0A	±5%	±1%	250mV
APM24UQ	36W	24V	0A	1.5A	±5%	±1%	350mV
NOTED:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) = Vo x Io

UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems

UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems Images
