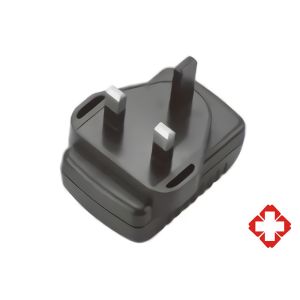

EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V UK Plug for Portable Nebulizers Inhalation Devices

Name: EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V UK Plug for Portable Nebulizers Inhalation Devices
Brand: ANENpower
Price: 1 USD

Wholesale EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V UK Plug for Portable Nebulizers Inhalation Devices from china suppliers

Brand Name : ANENpower

Model Number : APM19K

Certification : UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Input Range : 100 ~ 240Vac, 50 / 60Hz

Power Range : 15 ~ 24W

Certificates : UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA

Application : Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc.

MTBF : 100,000 Calculated Hours

Case Size : 60.5L X 39W X 34H(mm)

Contact Now

EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V UK Plug for Portable Nebulizers Inhalation Devices

EN/IEC 60601 certified medical-grade power adapter delivering precise triple voltage output: 12V 2A, 24V AC, and 9V charging with UK plug compatibility specifically engineered for portable nebulizers and respiratory inhalation devices. This CE certified power supply provides stable, uninterrupted energy for critical respiratory treatment equipment requiring hospital-grade reliability. Engineered with medical-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure safe operation in clinical environments including hospitals, home healthcare settings, and emergency medical facilities. The compact design features thermal protection and voltage regulation for continuous therapy sessions where power stability directly impacts patient treatment effectiveness and medication delivery accuracy. Built to meet stringent European medical safety standards for healthcare professionals and patients requiring certified performance in life-critical respiratory care applications.

• Power Range: 15~24W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC

• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 60.5L x 39W x 34H(mm)
• Weight: 120g

Model NO.	MAX OUTPUT POWER	OUTPUT VOLTAGE	MIN LOAD	MAX LOAD	LOAD REGULATION	LINE REGULATION	RIPPLE & NOISE
APM19KA	15W	5-8V	0A	3.0A	±5%	±1%	100mV
APM19KB	20W	9-13V	0A	2.0A	±5%	±1%	180mV
APM19KC	20W	14-19V	0A	1.42A	±5%	±1%	200mV
APM19KD	20W	20-27V	0A	1.0A	±5%	±1%	250mV
APM19KE	20W	28-35V	0A	0.71A	±5%	±1%	280mV
APM19KF	20W	36-48V	0A	0.55A	±5%	±1%	360mV
APM19KG	18W	5-8V	0A	3.0A	±5%	±1%	100mV
APM19KH	24W	9-13V	0A	2.0A	±5%	±1%	180mV
APM19KJ	24W	14-19V	0A	1.71A	±5%	±1%	200mV
APM19KK	24W	20-27V	0A	1.2A	±5%	±1%	250mV
APM19KL	24W	28-35V	0A	0.85A	±5%	±1%	280mV
APM19KM	24W	36-48V	0A	0.66A	±5%	±1%	360mV
NOTED:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) = Vo x Io

EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V UK Plug for Portable Nebulizers Inhalation Devices
